High Speed Thermal Paper Slitting Machine Model (KT-900B) KT-900B manufacturer from China Koten Machinery Industry Co.,Ltd.

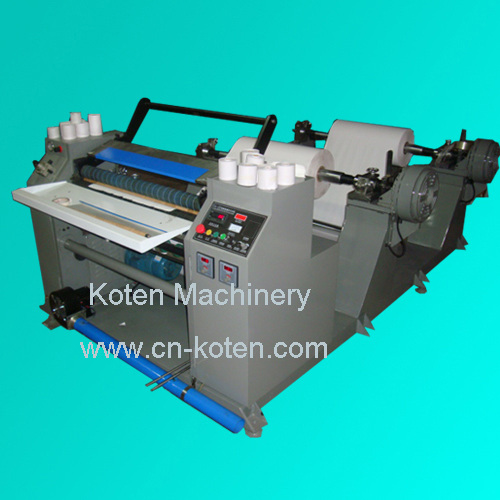

High Speed Thermal Paper Slitting Machine Model (KT-900B)

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: KT-900B

Production Capacity: 200set/month

Delivery Date: Within 30 days

standard: Export standard

Means of Transport: Ocean

Packing: By strong wooden cases.

Brand Name: koten

High Speed Thermal Paper Slitting Machine

Usage.
This machine mainly used for slitting and rewinding kinds of paper, like thermal paper, fax paper, bank receipt, computer bill, etc. It also can be used in the medical industry, film, self-adhesive paper, etc. Slitting. It is a ideal equipment for slitting the small paper core material both in China and all over the world.

Characteristic.
The speed of the machine can be adjustable and controlled by transducer, it has the function for the different rewinding width and different rewinding diameters adjustable. Also, customer can adjust the different rewinding length by himself according to the different requirement from 50cm to 6000cm. The unwinding roll controlled by magnetic powder brake. It also has the function of automatic punching with different colors, red and blue.

Model	KT-900B
Paper Layer	Two Layers
Paper Material	40-120gsm
Maximum unwinding width	900mm
Min. Slitting width	30mm
Max. unwinding diameter	900mm
Diameter of unwinding paper core	76mm (3 ' ' )
Diameter of rewinding paper core	Not Less Than 1
Adjustable cutting width(Custom-made)	37mm. 44mm. 57mm. 75mm210mm. 216mm. 257mm
Max. rewinding diameter	200mm
Cutting speed	12-180m/min
Total output Power: 3kw	380V 50HZ
External dimensions (LxWxH)	2800mmx2000mmx1400mm
Weight	About2000kgs
Auto Tension Control
